Plumb Dot Laser Level with Tripod- Dovoh PV-360G-Kit

Original price $119.99 - Original price $119.99
Original price
$119.99
$119.99 - $119.99
Current price $119.99

【Precision Plumb Dots】
【360° Horizontal & Vertical Coverage】
【Self-Leveling & Tilt Modes & Pulse Mode】



Features

【Precision Plumb Dots】Project upward and downward plumb dots for rapid vertical alignment of pipes, wires, and fixtures across floors and ceilings. With an accuracy of ±1/8 inch at 33 feet, it delivers precise reference points for professional installations and point-to-point alignment.

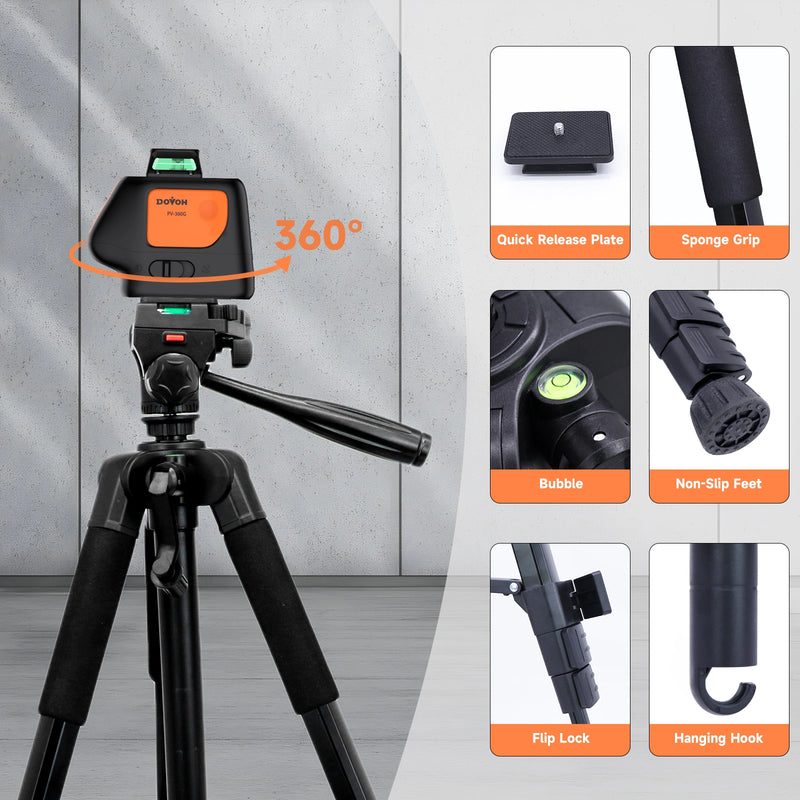

【Tripod Included】The DIY laser level kit comes with a dedicated tripod to provide a rock-solid foundation, guaranteeing accurate laser lines from any height. The tripod supports loads up to 3kg and extends to a full 60.2-inch height for versatile, stable use.

【Built-in Rechargeable Battery】Powered by a built-in 2600mAh lithium-ion battery that provides up to 10 hours of runtime. Enjoy all-day power without disposable batteries, and benefit from convenient Type-C recharging for ultimate jobsite flexibility.

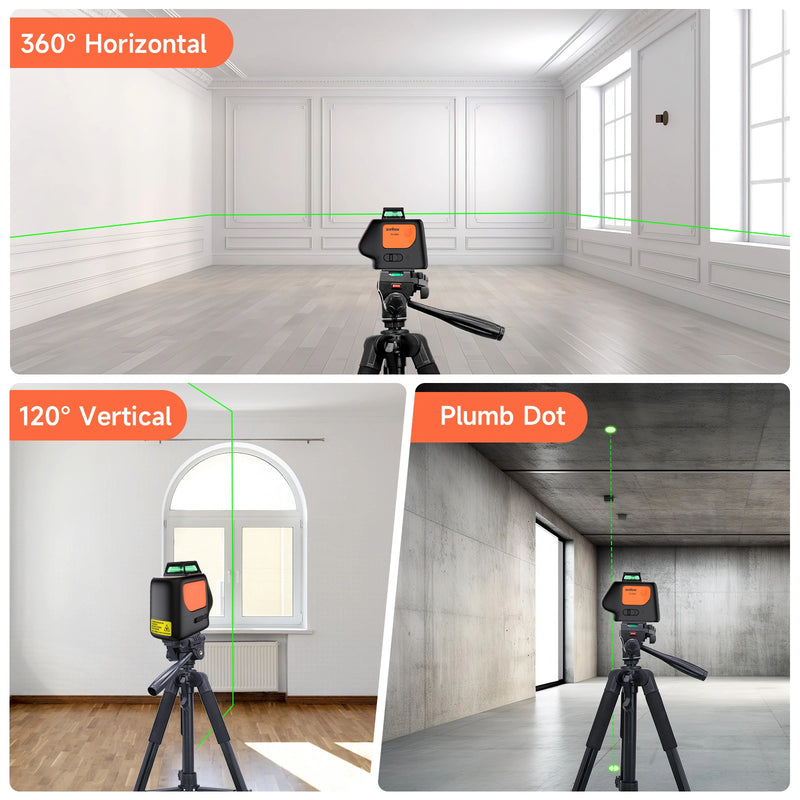

【All-in-one Alignment】Projects a full 360° horizontal line for leveling around a room, a 120° vertical line, and up/down plumb dots. This all-in-one alignment provides complete spatial coverage for leveling floors, walls, and ceilings simultaneously.

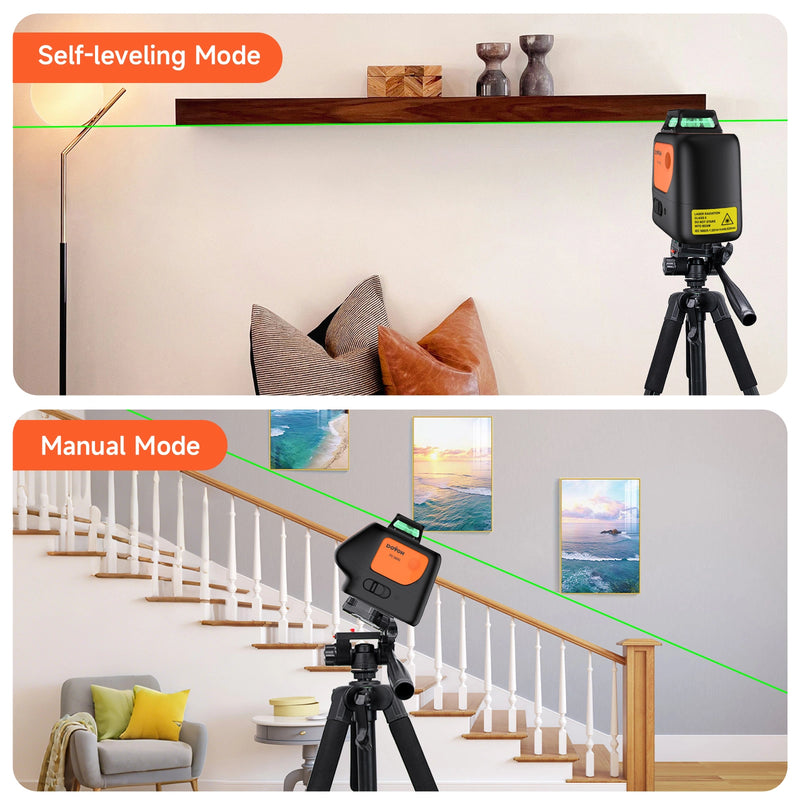

【Self-Leveling & Tilt Modes & Pulse Mode】
Auto-levels within ±4° and locks at any angle in Tilt Mode. Pulse mode extends range to 197ft with a laser receiver.

Specifications

Model: PV-360G
Dimension: 114x63x110mm
Weight: 465g
Laser Class: Ⅱ
Laser Type: 520nm, <1mw
Laser Beam: Green
Working Range (300LUX): 20m/66ft
Working Range (with laser receiver): 40-60m/131-197ft
Working Time (all laser beams on): 10 hours
Expanded Angle: H: 360°/ V: 120°
Plumb Dot Accuracy: ±2mm/10m (±1/13 in. at 33ft)
Leveling Accuracy: ±2mm/10m (±1/13 in. at 33ft)
Self-leveling Range: ±4°
Self-leveling Time: < 4 seconds
Power Adapter: 5V=2A
Battery: 2*3.7V 2600mAh Lithium Battery
Charging Time: About 2 hours
Charging Port: Type-C
Thread Mount: 1/4"-20
IP Rating: IP54
Operation Max. Humidity: 0.9
Operation Temperature: -10℃ ~ 40℃ (14℉ ~ 104°F)
Storage Temperature: -20℃ ~ 70℃ (-4°F ~ 158°F)
Tripod Type: Telescopic tripod

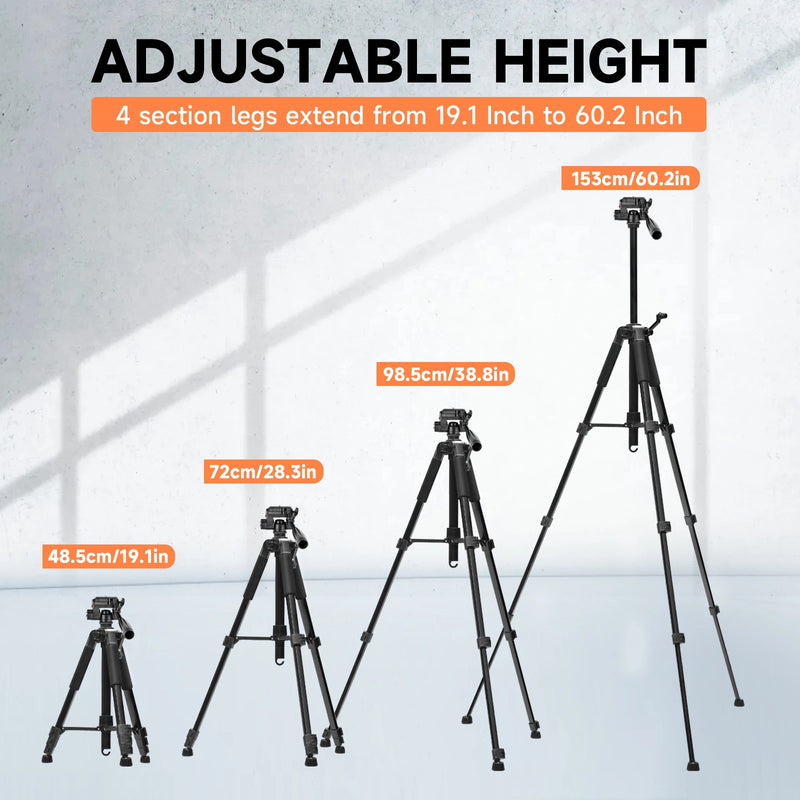

Adjustable Height: 19.1- 60.2 inch (48.5–152 cm)
Max Load: 3 kg

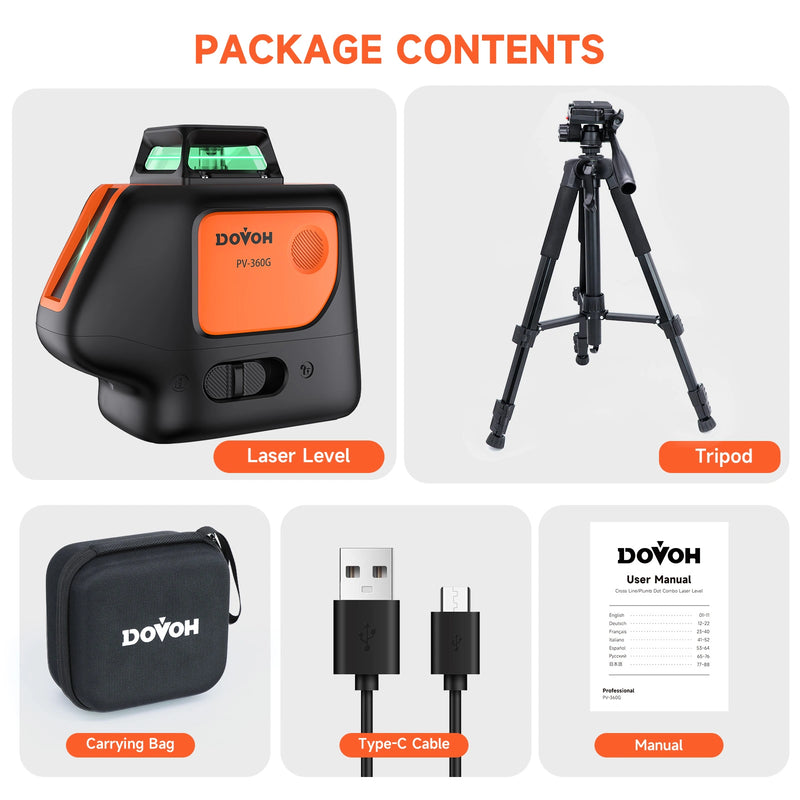

Packing List

1 x PV-360G Laser Level
1 x Telescopic tripod
‎1 x Carring Bag
1 x Type-C Cable
1 x User Manual

Features

【Precision Plumb Dots】Project upward and downward plumb dots for rapid vertical alignment of pipes, wires, and fixtures across floors and ceilings. With an accuracy of ±1/8 inch at 33 feet, it delivers precise reference points for professional installations and point-to-point alignment.

【Tripod Included】The DIY laser level kit comes with a dedicated tripod to provide a rock-solid foundation, guaranteeing accurate laser lines from any height. The tripod supports loads up to 3kg and extends to a full 60.2-inch height for versatile, stable use.

【Built-in Rechargeable Battery】Powered by a built-in 2600mAh lithium-ion battery that provides up to 10 hours of runtime. Enjoy all-day power without disposable batteries, and benefit from convenient Type-C recharging for ultimate jobsite flexibility.

【All-in-one Alignment】Projects a full 360° horizontal line for leveling around a room, a 120° vertical line, and up/down plumb dots. This all-in-one alignment provides complete spatial coverage for leveling floors, walls, and ceilings simultaneously.

【Self-Leveling & Tilt Modes & Pulse Mode】
Auto-levels within ±4° and locks at any angle in Tilt Mode. Pulse mode extends range to 197ft with a laser receiver.

DOVOH ACCURACY CALIBRATION AND TEST PROCESS

At DOVOH, quality and customer satisfaction are paramount.
DOVOH performs multiple processes of accuracy calibration and inspection during the laser level production to ensure all laser levels meet the accuracy standard of ±1/13 in. at 33ft (±2mm/10m).
We maintain rigorous testing standards, ensuring our laser levels pass salt spray, button, accuracy, waterproof, aging, high and low-temperature, shock-resistant, transportation tests, etc.
Trust DOVOH for precision and reliability in all your laser leveling needs.

Dovoh-self-leveling-calibration-process.png__PID:ca44d786-c89e-4f65-9383-7aa1fe1af759
Dovoh adjusted the balance weight from various directions to calibrate the laser line accuracy.
Dovoh staff is using a professional machine to calibrate the laser level accuracy.
Dovoh staff adopts an automatic accuracy inspection system to inspect the overall accuracy when the assembly is completed.

NOTE

🔹Check compatibility before purchasing due to international voltage differences.
🔹Fast blinking and beeping occurs when the laser is out of the self-leveling range(±4°).
🔹The working range varies based on the operating environment.
🔹Use laser receiver to increase working range under pulse mode.
🔹The laser beam in manual mode can't be used as a horizontal or vertical reference.

⚠️Laser devices are indispensable tools for many construction professions. However, like all instruments, it is crucial to educate oneself on their appropriate usage and potential hazards prior to operation. Directly gazing into a laser beam is strictly prohibited! Thus, it is of utmost importance to exercise caution and remain knowledgeable about the essential safety measures to avert any mishaps.
